A Comprehensive Analysis of CNC Machining Accuracy

In the process of rapid development of modern manufacturing, CNC (Computer Numerical Control) machining has become one of the core technologies in the manufacturing industry due to its efficiency and precision. CNC machining accuracy, as a key indicator of processing quality, plays a decisive role in the performance and lifespan of the final product. This article will explore the definition of CNC machining accuracy, influencing factors, improvement strategies, and practical applications.

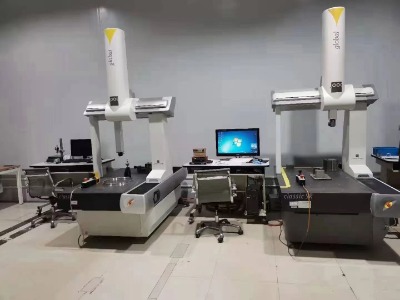

Micrometer Measurement Method

I. Definition of CNC Machining Accuracy

CNC machining accuracy refers to the degree of alignment between the actual dimensions, shape, and position of a machined part and the design requirements. It specifically includes the following types of accuracy:

1. Dimensional Accuracy: This reflects the deviation between the actual size of the machined part and the design size. It is typically quantified using tolerance bands. The narrower the tolerance band, the higher the dimensional accuracy, meaning the actual size is closer to the design specifications.

2. Shape Accuracy: Shape accuracy represents the difference between the actual shape of the machined part and the designed shape. Common shape accuracy indicators include roundness, flatness, straightness, etc. The smaller the shape error, the higher the shape accuracy, better meeting design requirements.

3. Position Accuracy: Position accuracy measures the deviation between the actual position of the machined part and the designed position, such as coaxiality, symmetry, parallelism, etc. The smaller the position error, the higher the position accuracy, ensuring better alignment with other components in assembly.

II. Factors Affecting CNC Machining Accuracy

CNC machining accuracy is not isolated but is influenced by multiple complex factors, primarily in the following key areas:

1. Machine Tool Accuracy: The machine tool, as the core equipment for machining, directly determines the lower limit of machining accuracy based on its manufacturing precision and rigidity. High-precision and high-rigidity machine tools can effectively suppress vibration and deformation during machining, providing a solid guarantee for achieving high-precision machining.

2. Tool Accuracy: The geometric accuracy and wear condition of the tool significantly impact machining accuracy. High-precision tools ensure stable cutting edges during machining, greatly reducing machining errors caused by tool issues.

3. Fixture Accuracy: Fixtures play a crucial role in positioning and clamping the workpiece during machining. The positioning accuracy and clamping force directly affect machining accuracy. Accurate positioning and stable clamping can effectively prevent displacement and deformation of the workpiece during machining.

4. Processing Parameters: Cutting speed, feed rate, and cutting depth directly participate in the dynamic changes of the machining process and have a notable impact on machining accuracy. Reasonably selecting and adjusting machining parameters can significantly reduce thermal deformation and vibration, thus improving machining accuracy.

5. Environmental Factors: Variations in temperature and humidity can cause thermal expansion in both the machine tool and workpiece, affecting machining accuracy. Maintaining a constant temperature and humidity environment, or employing effective temperature control measures, can minimize the impact of thermal deformation on machining accuracy.

III. Methods to Improve CNC Machining Accuracy

To achieve higher CNC machining accuracy, the following multiple dimensions can be addressed:

1. Select High-Precision Machine Tools: Choosing CNC machine tools with high precision and rigidity is the primary prerequisite for improving machining accuracy. These machine tools can create a more stable machining environment, reducing machining errors from the source.

2. Use High-Precision Tools: Adopting high-precision, wear-resistant tools and establishing a regular inspection and replacement mechanism ensures that tools always maintain good geometric accuracy and cutting performance, stabilizing machining quality.

3. Optimize Fixture Design: Carefully designing and using high-precision fixtures with accurate positioning and stable clamping ensures the stability of the workpiece during machining and eliminates errors caused by fixture issues.

4. Reasonably Set Processing Parameters: Based on the material characteristics and specific processing requirements, scientifically and reasonably setting cutting speed, feed rate, and cutting depth can effectively suppress thermal deformation and vibration during the machining process.

5. Control the Machining Environment: Maintaining the machining environment at a constant temperature and humidity avoids fluctuations in temperature and humidity that may affect the machine tool and workpiece. In cases where necessary, coolant or air cooling methods can be used to precisely control the machining temperature.

6. Online Detection and Feedback: Introducing advanced online detection and feedback systems to monitor size and shape errors in real-time during the machining process. Immediate compensation and adjustment can be made to ensure machining accuracy is consistently under control.

IV. Practical Applications of CNC Machining Accuracy

In numerous fields with strict accuracy requirements, CNC machining accuracy plays an irreplaceable key role:

1. Aerospace: The aerospace industry requires nearly perfect precision in parts' size and shape. High-precision CNC machining ensures the performance and safety of critical components such as aircraft, satellites, and spacecraft, laying a solid foundation for the development of aerospace technologies.

2. Medical Equipment: Medical devices such as artificial joints, implants, and surgical instruments have extremely high precision requirements. CNC machining, with its high accuracy and superior surface quality, provides strong support for the safety and reliability of medical devices.

3. Mold Manufacturing: Mold manufacturing not only demands high precision but also has strict requirements for surface finish to ensure stable product quality. CNC machining can precisely process molds with complex shapes and fine structures, effectively extending mold life and improving product quality.

4. Automotive Manufacturing: In the automotive manufacturing process, key components such as engines, transmissions, and suspension systems require strict precision. High-precision CNC machining ensures the performance and longevity of these components, significantly enhancing the safety and comfort of the entire vehicle.

Conclusion

In conclusion, CNC machining accuracy, as the core indicator for evaluating machining quality, profoundly affects the performance and lifespan of the final product. By selecting high-precision machine tools, tools, and fixtures, reasonably setting machining parameters, strictly controlling the machining environment, and introducing advanced online detection and feedback systems, CNC machining accuracy can be comprehensively and significantly improved. In fields such as aerospace, medical equipment, mold manufacturing, and automotive manufacturing, high-precision CNC machining technology plays a crucial role, continuously driving modern manufacturing towards higher levels.
